      MAXL-5150,5200,5230 150W,200W,230W 防爆泛光燈
      產品類別: 防爆照明灯具

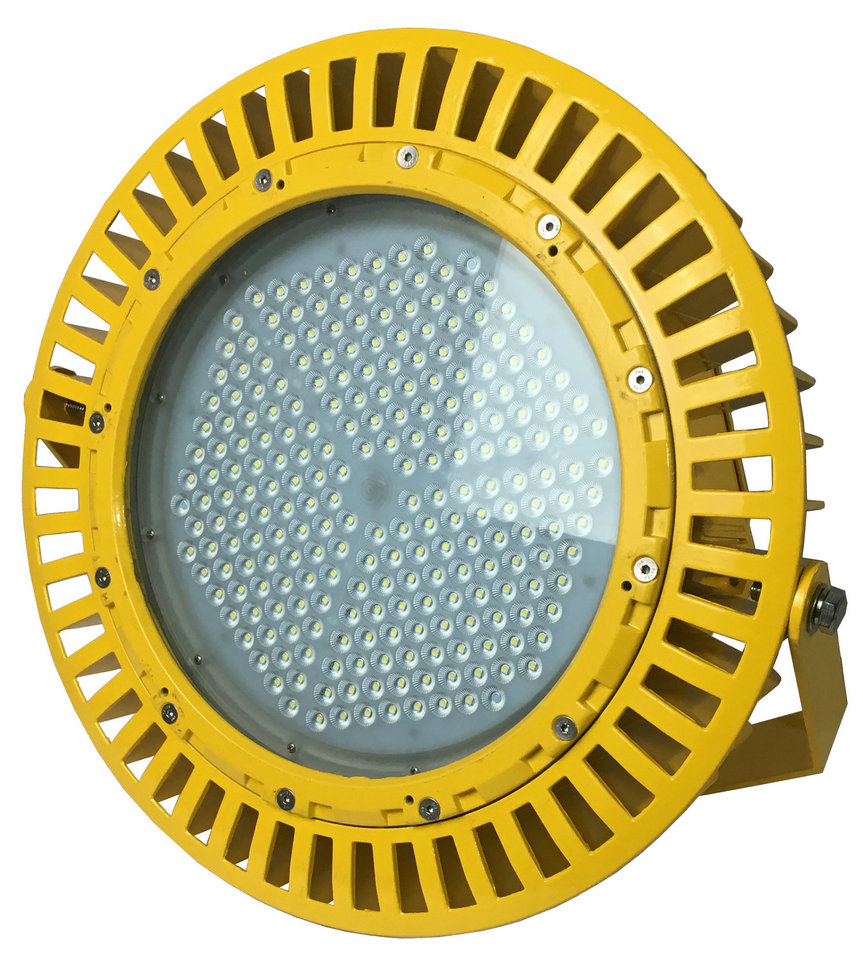

      名稱: MAXL-5150,5200,5230 150W,200W,230W 防爆泛光燈
      name: MAXL-5150,5200,5230 150W,200W,230W Explosion Floodlight
      瀏覽次數: 11988

      Features

      Super brightness led flood or spot light.Use OSRAM LED Chip and Meanwell Driver;



      Excellent anti-explosion,anti-corrosion and durability,safe use in all kinds of inflammable and explosive hazardous area,such as petrochemical plant,powder plant,gas equipments;



      Aluminum Integratied lamp housing make chip connect with housing tightly,through cooling fins and special airflow structure,make excellent heat radiation;



      Almost free maintenance required,IP66 water proof and dust proof,100000 hours lifespan;



      Intelligent power regulator supplement luminous flux and reduce luminous decay,

      with protection of overvoltage,over current,and surge current;



      Gas explosive environment:Group IIA,IIB,IIC;

      For Gas Zone 1,Zone2;For Dust Zone 21,Zone 22;Temperature class: T1 to T6;

      Model

      MAXL-5150

      MAXL-5200

      MAXL-5240

      Light Type

      Floodlight / Spot Light

      Voltage

      AC100-240V / DC24V / DC36V

      Protection Class

      Exd II CT6 Gb,IP66

      Insulation Degree:I,

      Corrsion Resistant:WF2,

      Rated Power

      150W

      200W

      240W

      Equivalent MH Lamp

      400W

      500W

      700W

      Luminous Efficacy

      Up to 130 Lm/W

      Luminous Flux

      19500Lm

      26000Lm

      31200Lm

      Mounting Height

      10-15m

      15-20m

      20-30m

      Lens Angle

      60°

      90°

      110°

      Space Height Ratio

      0.9

      1.35

      1.4

      CRI(RA)

      >70

      CCT

      5000K

      Power Factor

      >0.9

      Life Span

      100000 Hours

      Leading Cable Diameter

      D8-14mm

      Cable Inlets

      Screw Thread

      M20×1.5,M25×1.5,NPT1/2",NPT3/4",G3/4"

      Material

      Lampshade:Explosion Proof Tempered Glass;

      Housing:DIECAST Al;

      Operation Temp

      -45 – 70℃

      Weight

      10Kg

      Install Way

      Bracket / Ceiling / Wall Mounted / Pole / Flange

      Measurement

      D416*215mm
